SCREW CLAMP WITH DOUBLE ARTICULATED SHACKLE

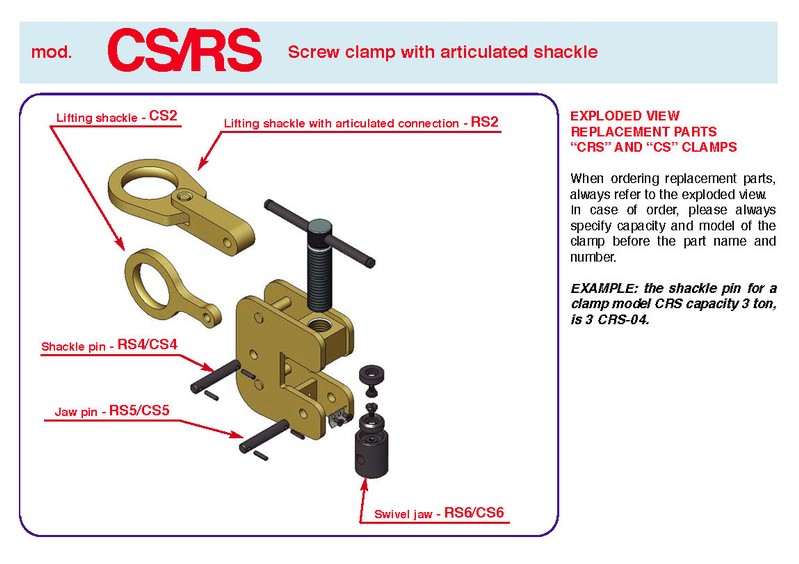

"RS" clamp has the same feature as model "CS" but, in addition, it incorporates a pivoting shackle allowing a 90° sideloading.
Do not leave a plate to be lifted resting inside an open jaw.
Place the clamp on the plate maintaining 4÷5 mm clearance between the back of the jaw and the plate to be lifted.
Tighten screw making sure that gripping surface are parallel to the surface of the member to be lifted and not partially on and off the edge of the plate.
Do not overtighten the screw.
Remove clamp only after the load is completely supported and at rest in a permanent stable position.
